Imagine holding a tool that can slice through steel like butter, etch intricate patterns on glass, or transform a sheet of wood into a delicate lace-like sculpture—all with the precision of a surgeon’s scalpel. This isn’t science fiction; it’s the everyday magic of laser cutting. Whether you’re an engineer prototyping a groundbreaking invention, an artist crafting a masterpiece, or a DIY enthusiast bringing your wildest ideas to life, laser cutters are the unsung heroes of modern creativity. Let’s dive into the fascinating world of laser cutting and uncover how this technology is reshaping industries and hobbies alike.
What Exactly Is a Laser Cutter?
At its core, a laser cutter is a CNC (Computer Numerical Controlled) machine—a robot that follows digital designs with pinpoint accuracy. Think of it as a high-tech pencil that never slips, never tires, and never makes a mistake. You design a pattern on your computer, click “print,” and the laser cutter brings it to life by cutting or etching materials like wood, acrylic, paper, or even metal. But here’s the kicker: while 3D printers build objects layer by layer, laser cutters work in two dimensions, slicing through flat sheets to create parts that can be assembled into 3D structures. This makes them perfect for rapid prototyping, custom signage, jewelry, architectural models, and even functional machinery parts.
The Science Behind the Beam: How Laser Cutters Work
The Anatomy of a Laser Cutter
- 1. The Laser Resonator: This is where the magic begins. A laser beam is generated here—either from gas (CO2 lasers), crystals (neodymium lasers), or fiber optics (fiber lasers).
- 2. Mirrors and Lenses: The beam travels through a series of mirrors to the cutting head, where a lens focuses it into a hair-thin line of intense energy.

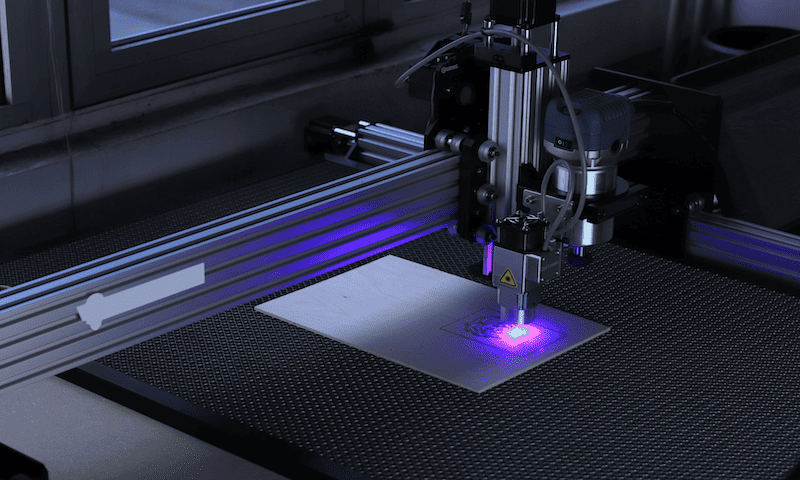

- 3. The XY Gantry: This mechanical arm moves the laser head across the material, tracing your design with surgical precision.
Cutting vs. Rastering: Two Modes, Infinite Possibilities
- • Vector Cutting: The laser acts like a scalpel, slicing cleanly through materials. It follows vector paths (think: outlines) to create shapes, holes, and edges.
- • Rastering: Here, the laser becomes an artist’s brush, burning away the surface layer to create images, text, or gradients. It works like an inkjet printer, dotting the surface at up to 1,200 DPI for stunning detail.
Choosing Your Laser: CO2, Fiber, or Neodymium?
Not all lasers are created equal. The type you choose depends on your materials and goals:
1. CO2 Lasers
- • Best For: Wood, acrylic, glass, leather, paper, and plastics.
- • Why They’re Popular: Affordable, versatile, and perfect for hobbyists. They can’t cut metals but excel at engraving anodized aluminum.
2. Fiber Lasers

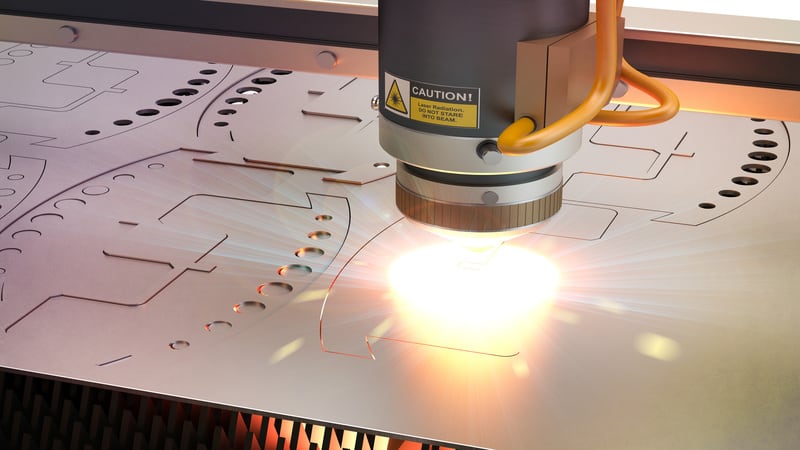

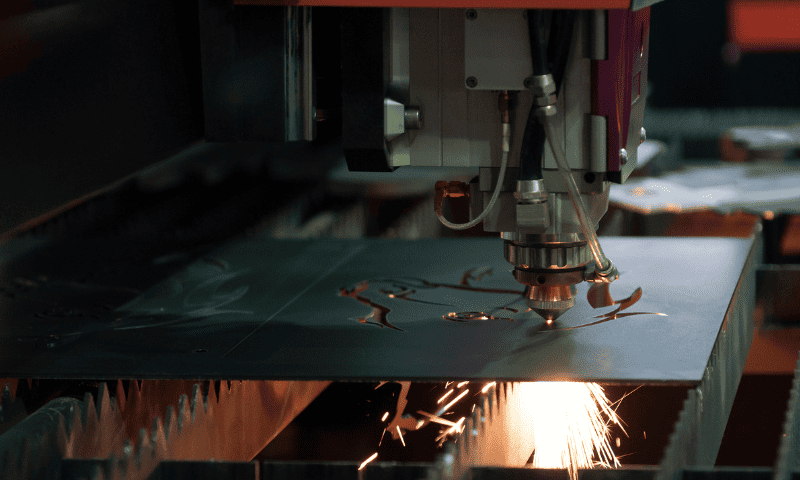

- • Best For: Metals (steel, aluminum, brass) and some plastics.
- • Industrial Powerhouse: Used for marking serial numbers on aerospace parts or cutting intricate metal components.
3. Neodymium Lasers
- • Best For: Thick metals, ceramics, and heavy-duty materials.
- • Trade-Off: High maintenance but unmatched power for industrial applications.
Designing for Laser Cutting: 5 Rules to Live By
Rule 1: Mind the Kerf
Every cut leaves a tiny gap called the kerf—the width of the laser beam. On thick materials, the kerf widens toward the bottom (like a trapezoid). Always account for this in your designs, especially for snug-fit joints.
Rule 2: Avoid the Flames
Laser cutting generates heat. Thin, delicate features can melt or catch fire. Keep parallel lines at least 1/8 inch apart, and avoid overly intricate details in flammable materials like paper or thin acrylic.
Rule 3: Embrace the Living Hinge
Want to make rigid material bend? Use a kerf bend—a series of closely spaced cuts that create flexibility. Perfect for folding boxes, lampshades, or wearable art.
Rule 4: Master the Joint
From finger joints to dovetails, laser-cut pieces rely on clever connections:
- • Finger Joints: Interlocking tabs for 90-degree corners.
- • Slotted Joints: Slide pieces together like a 3D puzzle.
- • Bolted Connections: Add nuts and bolts for adjustable assemblies.
Rule 5: Stack to Sculpt
Layer laser-cut sheets to create 3D sculptures, topographic maps, or functional parts. Software like Autodesk 123D Make can slice 3D models into stackable layers.
Software Spotlight: Your Digital Workshop
For 2D Designs:
- • Adobe Illustrator: Industry standard for vector graphics.
- • Inkscape (Free): Open-source powerhouse for hobbyists.
- • CorelDRAW: Perfect for combining graphics and text.
For 3D to 2D Magic:
- • Autodesk Fusion 360: Convert 3D models into flat patterns.
- • Solidworks: Ideal for engineering-grade parts.
The Art of Settings: Power, Speed, and Precision
Laser cutters aren’t “set and forget.” Dial in these settings like a pro:
- • Power: Too high, and you’ll burn through thin materials. Too low, and you’ll get incomplete cuts.
- • Speed: Faster = quicker cuts but risk incomplete edges. Slower = cleaner edges but potential melting.
- • Frequency (for cutting): Higher = smoother cuts; lower = safer for flammable materials.
- • Resolution (for rastering): Higher DPI = finer details but longer processing times.
Beyond the Workshop: Laser Cutting’s Surprising Uses
- • Fashion: Laser-cut leather jackets, lace fabrics, and geometric accessories.
- • Architecture: Scale models with impossibly detailed windows and facades.
- • Art: Etched glass installations, wooden portraits, and layered paper sculptures.
- • Tech: Circuit board prototypes, smartphone casings, and drone components.
The Future Is Bright (and Precise)
Laser cutting bridges the gap between imagination and reality. It’s democratizing manufacturing, empowering small businesses, and turning garages into mini-factories. As CO2 lasers become more affordable and fiber lasers push the limits of metalwork, this technology is no longer just for engineers—it’s for dreamers, makers, and anyone daring enough to create something extraordinary. So, what will you make? A clockwork-inspired lampshade? A stainless steel business card? Or maybe a wooden puzzle that stumps your friends? Whatever it is, remember: with a laser cutter, the only limit is your creativity.
